Description

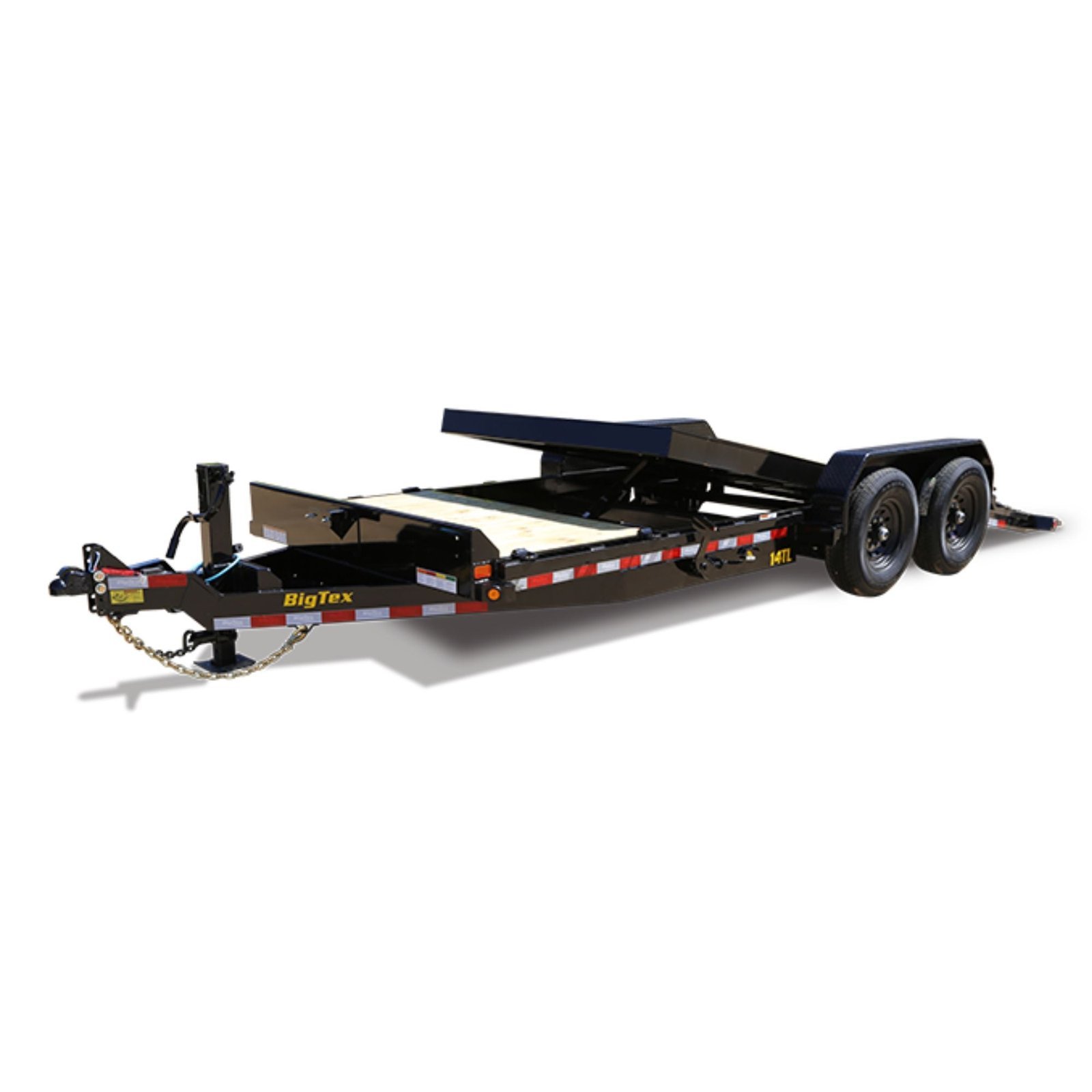

With a little bit of everything to keep you rolling on your equipment hauling tasks, the 14TL Heavy Duty Tilt Bed Equipment Trailer features a rear tilt deck as well as a stationary front deck. You can stay in control of your equipment with a hydraulic dampening system with a control valve for smooth loading and unloading. And with a fabricated front stop rail and expanded cargo space, you can use every inch of your bed for maximum hauling efficiency. Get ready for a new level of productivity.
| Standard Feature | Available Options | |
| Axles | 2 – 7,000# Premium, 4″ Drop-Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Tongue | 6” Channel Fold Back/Wrap Tongue 10″ I-Beam (XX#) Neck on Gooseneck models | |
| Coupler | Round Adjustable Pin 2-5/16” on Gooseneck Model Adjustable 2-5/16” Demco EZ Latch | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model | |
| Frame | 6″ Channel | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Front Stop Rail | 3/16″ Fabricated Front Stop Rail (Bumper Pull Only) | |
| Floor | APEX Fortified Lumber |
|
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Bolt | |
| Wheels | Black Mod | |
| Spare Mount | Front Spare Tire Mount | |
| Spare Tire | Not Included |
|
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black |
|
| Tilt Deck Dimensions | 16’x75″ Wide (83″ Between Fenders) with 1/4″ Diamond plate Knife Edge | |
| Tilt Deck Operation | Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism | |
| Stationary Deck Area | 4′ x 83″ (20′ Models) 6’x 83″ (22′ Models) | |
| Rubrail | Rub Rail Along Both Sides | |
| Tie-Downs | (6) 5/8″ D-Rings |
|
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Tilt Deck Angle | 12° |
| Model | 14TL-22 | 14TL-20GN | 14TL-20 | 14TL-22GN |
| Pull Type | Bumperpull | Bumperpull | Bumperpull | Bumperpull |
| GVWR | 14000 lbs | 14000 lbs | 14000 lbs | 14000 lbs |
| GAWR (Ea. Axle) | 14000 lbs | 14000 lbs | 14000 lbs | 14000 lbs |
| Empty Weight | 3660 lbs | 3460 lbs | 3460 lbs | 3660 lbs |
| Cargo Capacity | 10340 lbs | 10540 lbs | 10540 lbs | 10340 lbs |
| Bed Length | 22′ | 20′ | 20′ | 22′ |
| Bed Width | 83″ | 83″ | 83″ | 83″ |
| A | 273-1/2″ | 249-1/2″ | 249-1/2″ | 273-1/2″ |
| B | 154-1/2″ | 130-1/2″ | 130-1/2″ | 154-1/2″ |
| C | 119″ | 119″ | 119″ | 119″ |
| D | 201″ | 201″ | 201″ | 201″ |
| E | 72″ | 48″ | 48″ | 72″ |
| Tongue Length | 48-1/2″ | 48-1/2″ | 48-1/2″ | 48-1/2″ |
