Description

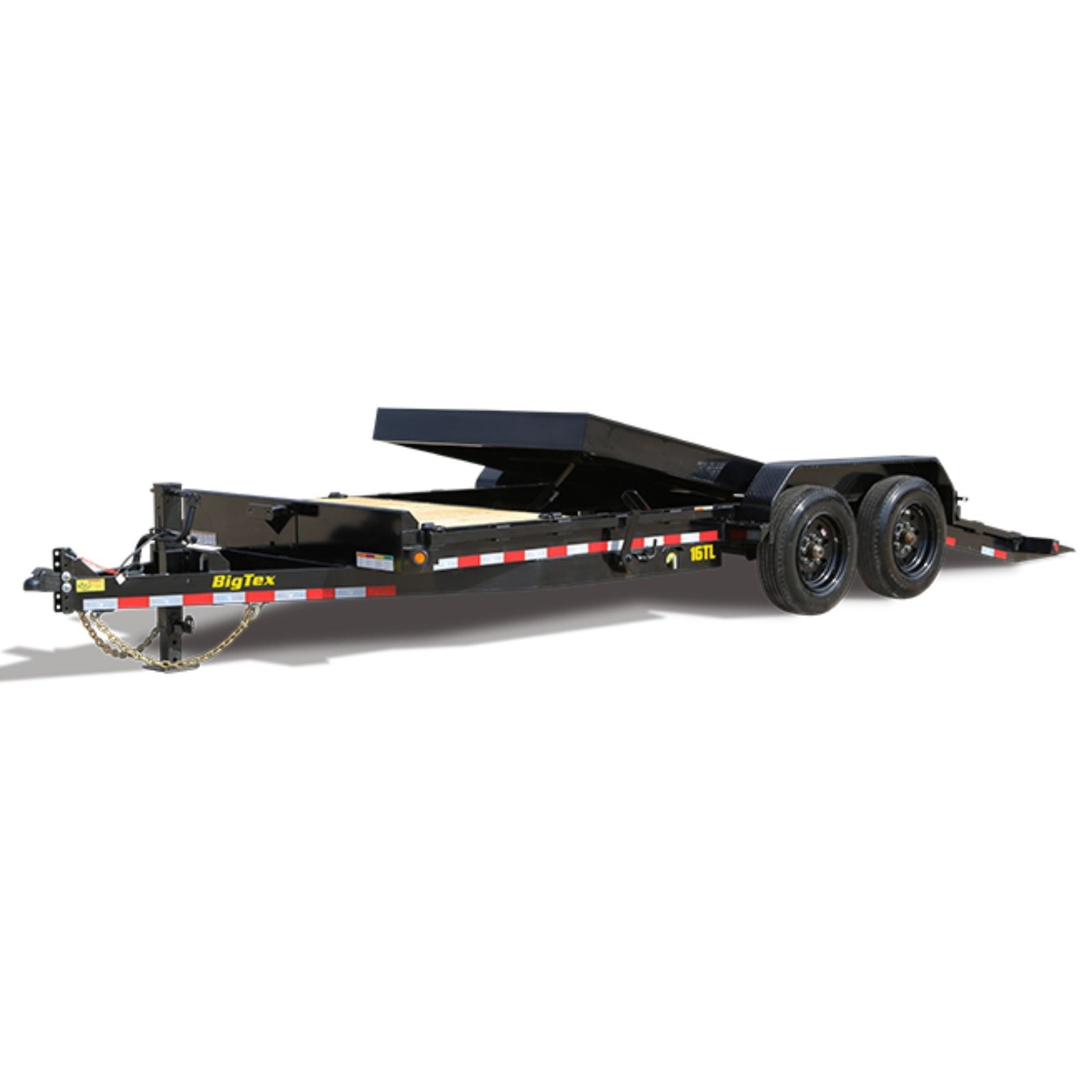

Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models—from 20-feet to 22-feet—this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
| Standard Feature | Available Options | |
| Axles | 2 – 8,000# Premium, with Oil Bath and Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Torsion Axles | |
| Coupler | Adjustable 2-5/16” Demco EZ Latch | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8″ Channel | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Front Stop Rail | 3/16″ Fabricated Front Stop Rail | |
| Floor | APEX Fortified Lumber |
|
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST215/75 R-17.5 Load Range E Radial Tires | |
| Bolt Pattern | 8-Bolt | |
| Spare Mount | Front Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black |
|
| Tilt Deck Dimensions | 75″ Wide (83″ Between Fenders) with 1/4″ Diamond plate Knife Edge | |
| Tilt Deck Operation | Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism | |
| Stationary Deck Area | 4′ x 83″ (20′ Models) 6’x 83″ (22′ Models) | |
| Rubrail | Rub Rail Along Both Sides | |
| Tie-Downs | (6) 5/8″ D-Rings |
|
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Tilt Deck Angle | 14° |
| Model | 16TL-22 | 16TL-20GN | 16TL-20 | 16TL-22GN |
| Pull Type | Bumperpull | Bumperpull | Bumperpull | Bumperpull |
| GVWR | 17500 lbs | 17500 lbs | 17500 lbs | 17500 lbs |
| GAWR (Ea. Axle) | 7000 lbs | 7000 lbs | 7000 lbs | 7000 lbs |
| Empty Weight | 4140 lbs | 4880 lbs | 4080 lbs | 4940 lbs |
| Cargo Capacity | 13360 lbs | 12620 lbs | 13420 lbs | 12560 lbs |
| Bed Length | 22′ | 20′ | 20′ | 22′ |
| Bed Width | 83″ | 83″ | 83″ | 83″ |
| A | 273-1/2″ | 249-1/2″ | 249-1/2″ | 273-1/2″ |
| B | 154-1/2″ | 130-1/2″ | 130-1/2″ | 154-1/2″ |
| C | 119″ | 119″ | 119″ | 119″ |
| Tongue Length | 47″ | 47″ | 47″ | 47″ |
